RHP / RHI Cooking Kettle – Technical Datasheet
Specifications:
- Material: Stainless steel 304
- Heating:
- RHP: Gas heated (premix burner)
- RHI: Steam heated (Thermplate bottom)
- Inner kettle: Single-walled
- Control: MCTTA-120 in separate stainless steel control cabinet for wall-mounting
- Lid:
- 250–350 L: Single-walled hinged with handle
- 500–750 L: Insulated, electrically operated
- 1000–2200 L: Insulated, electrically operated
- Lining: Polished (RHP) / Blasted (RHI)
- Drain valve: DN80
- Feet: 4 hygienic adjustable feet
- Bottom strainer: Stainless steel, standard
- Smoke exhaust (gas types): Standard in the middle, through the top plate
Options:
- Electric heating, direct bottom heated (RHP)
- Electric heating, double-walled with oil (RHP)
- Steam heated Thermplate bottom (RHP)
- Steam heated Thermplate front/back controlled together (RHP)
- Steam heated Thermplate front/back controlled separately (RHP)
- Product contact parts in stainless steel 316
- Drain valve DN100
- Water supply + water meter (max 60°C)
- Manual water supply
- Overflow in top plate
- Core sensor
- Insulated lid (for 250–350 models)
- Visunet comfort incl. extension board
- Stainless steel floating strainer
- Basket with fixed bottom
- Basket with 2‑part folding bottom
- Lifting beam

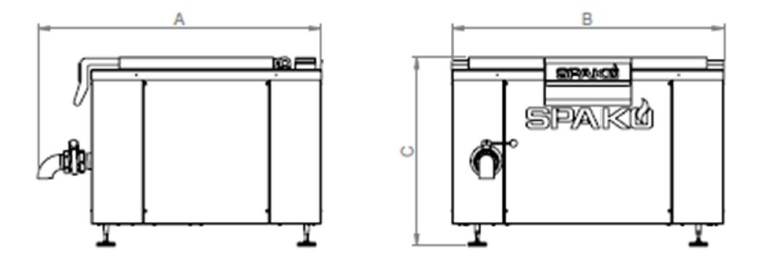

ORWK Agitator Kettle – Types, Dimensions & Power
RHP 250
- Dimensions: A = 1315 mm, B = 1070 mm, C = 1077 mm
- Power: 16 kW
- Volume: 250 L

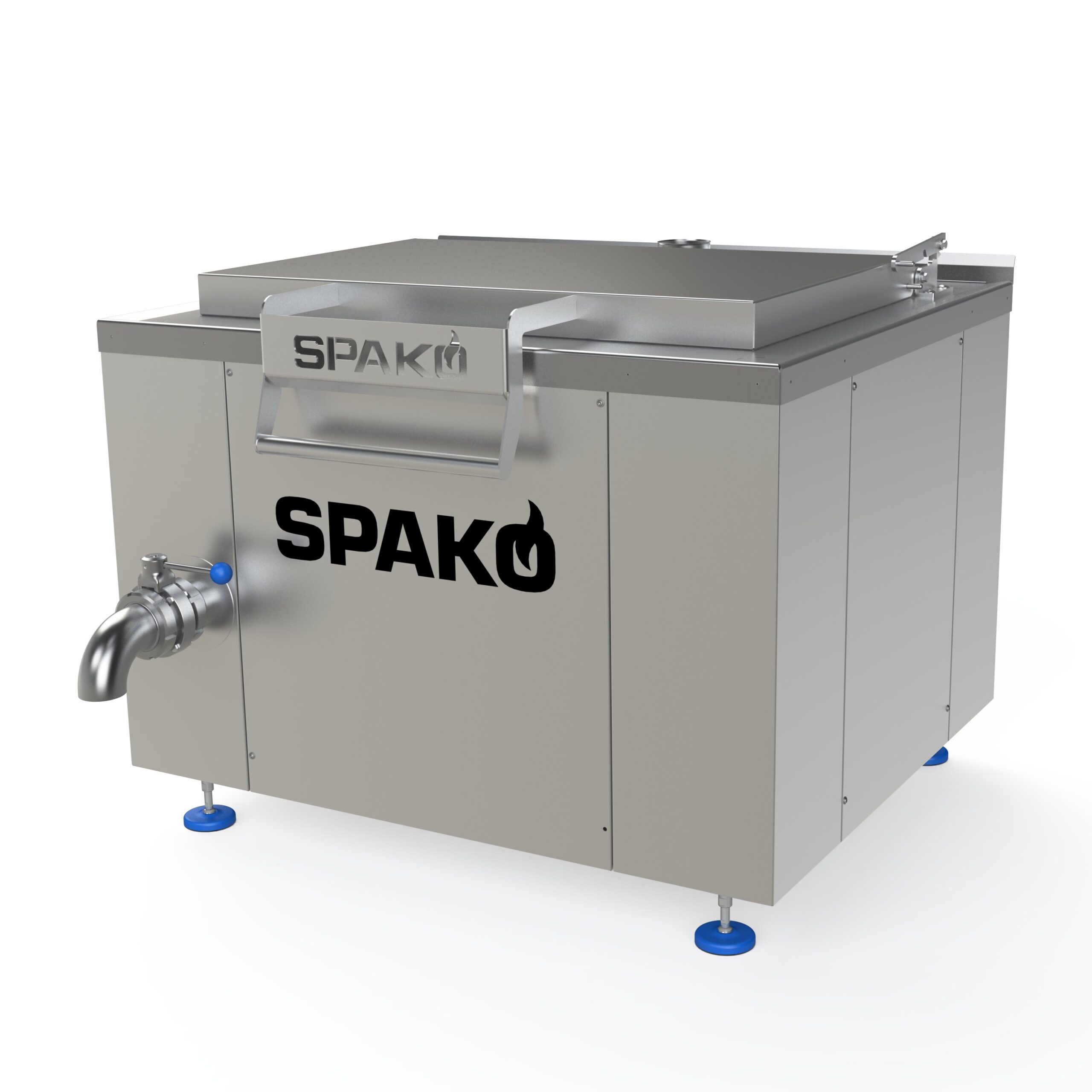

RHP 350
- Dimensions: A = 1315 mm, B = 1370 mm, C = 1057 mm
- Power: 22 kW
- Volume: 350 L
RHP 500
- Dimensions: A = 1465 mm, B = 1545 mm, C = 1075 mm
- Power: 32 kW
- Volume: 500 L
RHP 750
- Dimensions: A = 1465 mm, B = 2195 mm, C = 1055 mm
- Power: 47 kW
- Volume: 750 L
