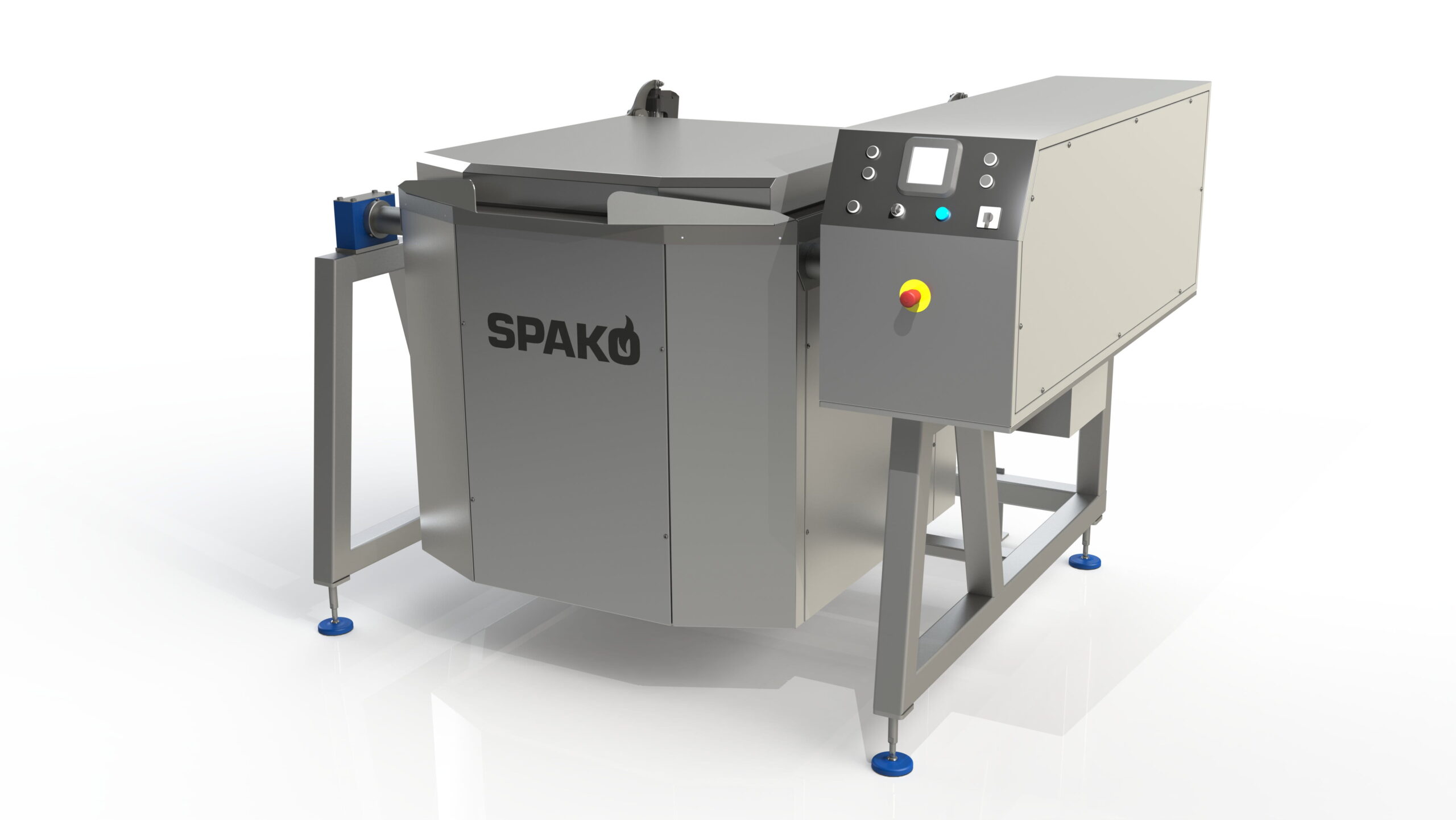

KRWK Agitator Kettle – Technical Datasheet
Specifications
- Material: Stainless steel 304
- Heating: Electric in thermal oil
- Inner Kettle: Double-walled stainless steel, round
- Control: MCTTA-500, fixed on machine, right side
- Lid: Insulated, electrically operated
- Lining: Polished
- Agitator: Removable stainless steel anchor agitator with Teflon bottom- and sidewall scrapers, variable speed
- Motor: Drives agitator at the bottom of the machine
- Feet: 4 hygienic adjustable feet

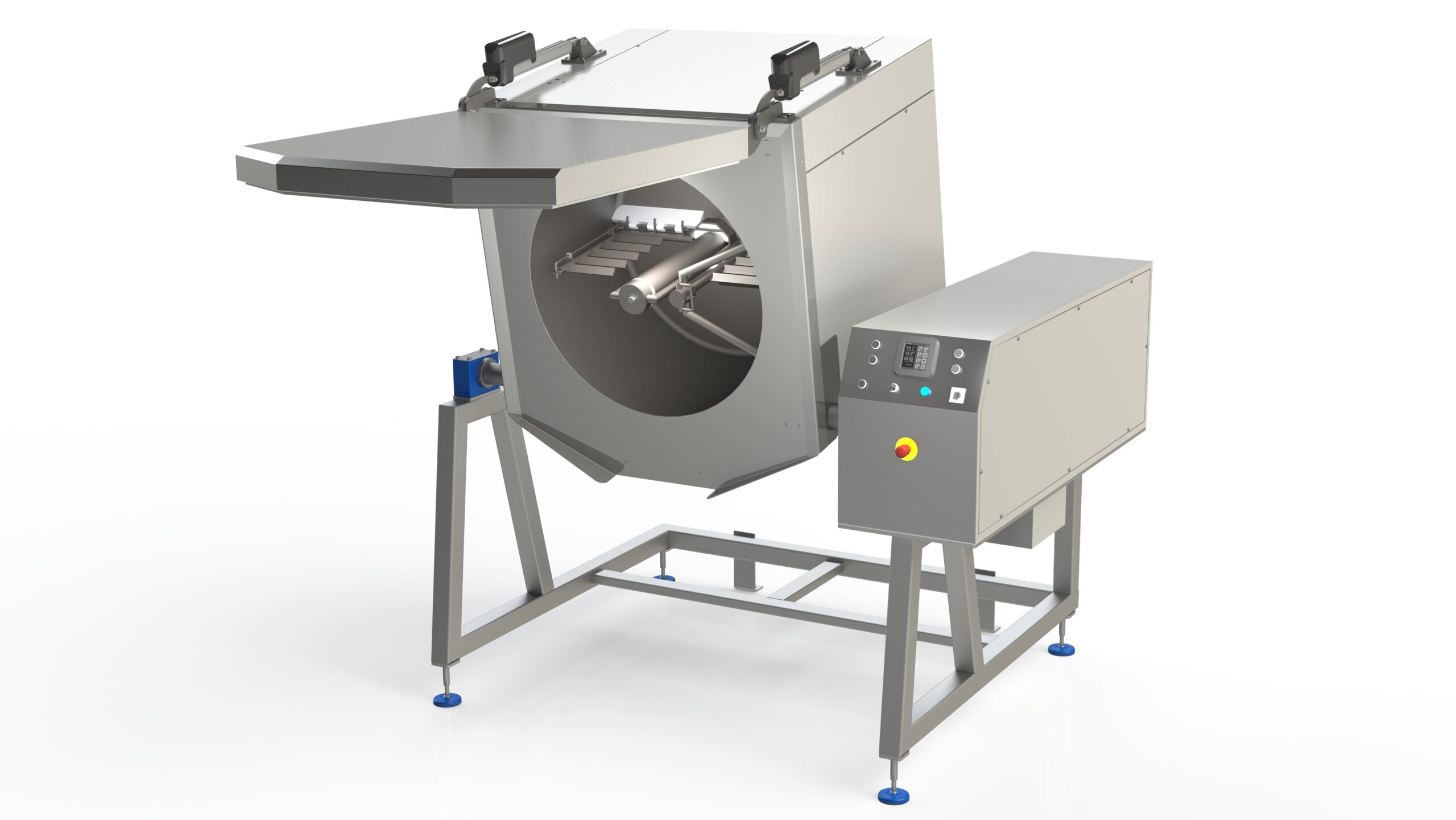

- Tilting: Electrically tiltable with fixed pouring outlet
Options
- Heating: steam-heated, thermplate front/back/bottom controlled together
- Heating: steam-heated, thermplate front/back/bottom controlled separately
- Product contact parts in stainless steel 316
- Water supply and water meter (max. 60°C)
- Drain valve DN80
- Drain valve DN100
- Lid with inspection and filling hatch
- Visunet comfort including extension board
- Pouring sieve
- LED signal in 3 colors
- Counterholder fixed in the machine
- Removable counterholder
- Optional running agitator when tilted

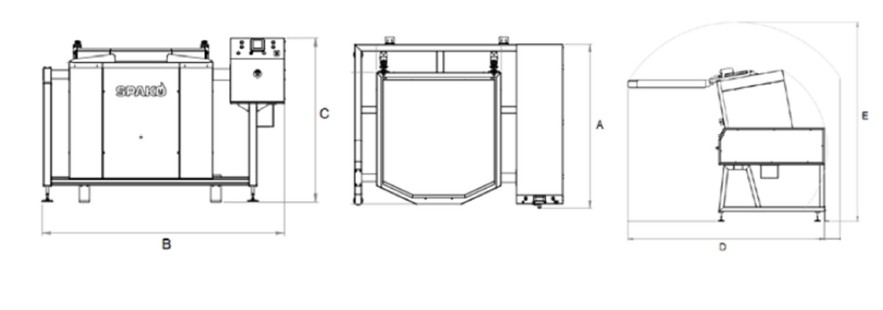

Technical Data
- KRWK 350
- A: 1670 mm
- B: 2135 mm
- C: 1560 mm
- D: 2990 mm
- Volume: 350 L
- KRWK 500
- A: 1850 mm
- B: 2360 mm
- C: 1665 mm
- D: 3340 mm
- Volume: 500 L
- KRWK 750
- A: 2100 mm
- B: 2550 mm
- C: 1815 mm
- D: 3815 mm
- Volume: 750 L
