Description

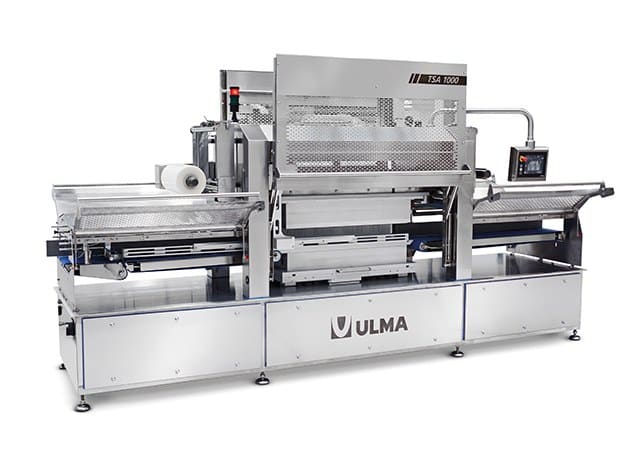

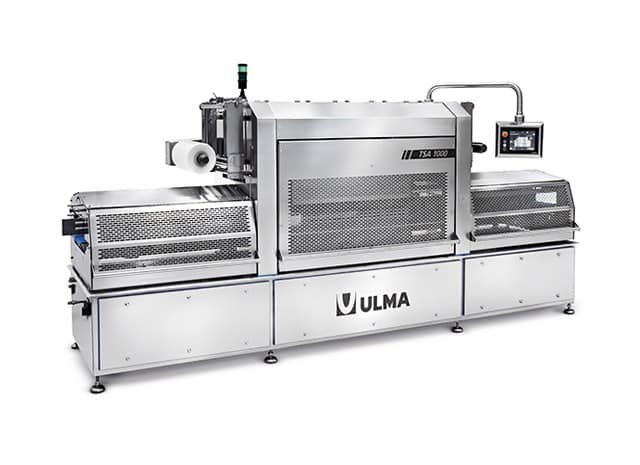

Automatic tray sealer for all type of trays and materials. Different printed top film materials can be used. Depending on the requirements of the product to be packaged, MAP, vacuum, skin… can be made.

This equipment has been designed for integration into high production lines or processes with high accuracy in tray positioning.

They can work in single-line or double-line, according to the specifications of trays and model.

DESIGN HIGHLIGHTS

Hygienic design.
Sealing force.
Easy cleaning.
Robust construction.
Easy to use.
Reduced maintenance costs.
Versatility.

Technical Specification

Maximum sealing area: 330 x 1030 mm.
Maximum tray height: 80/120 mm.

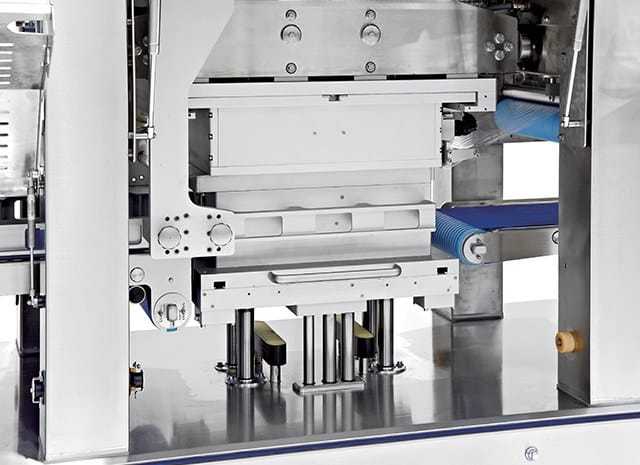

Die lifting system by servomotor.

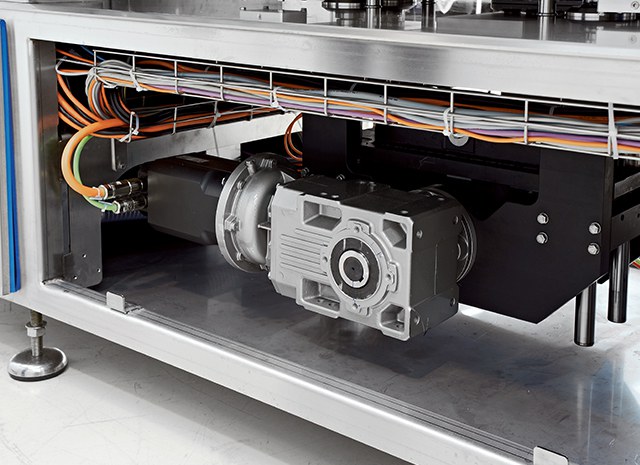

Arm opening/closing and die transfer by servomotor.

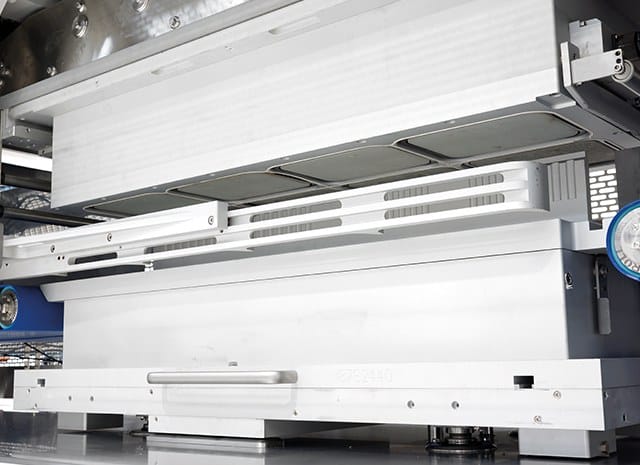

Die change: Quick and easy change without tools and die/dome positioning detectors.
Protection rank: IP 65.

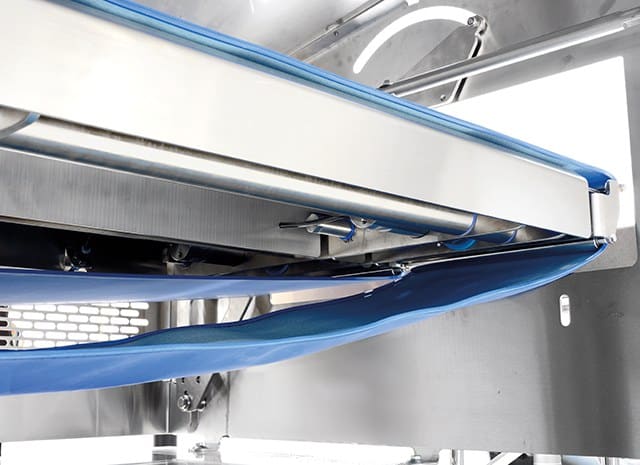

Tray feeding and positioning by belt with drum-motor.
Belt disassembly without tools.
Gas pressure control by panel (recordable). Gas accumulator tank included.

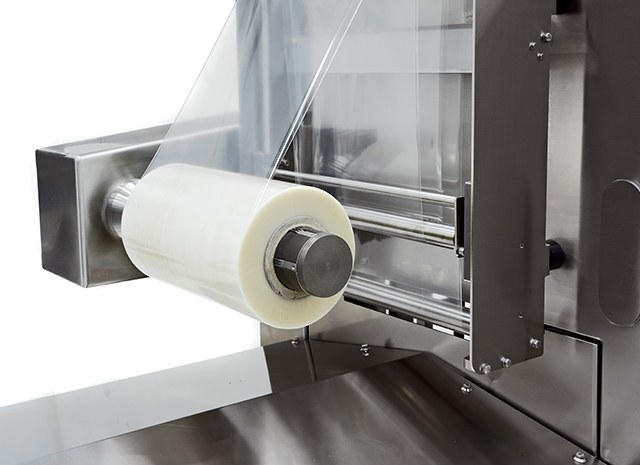

Reel holder: pneumatic grip.
Film end and break detectors.
Motorized film tension control.
Centralized lubrication system.

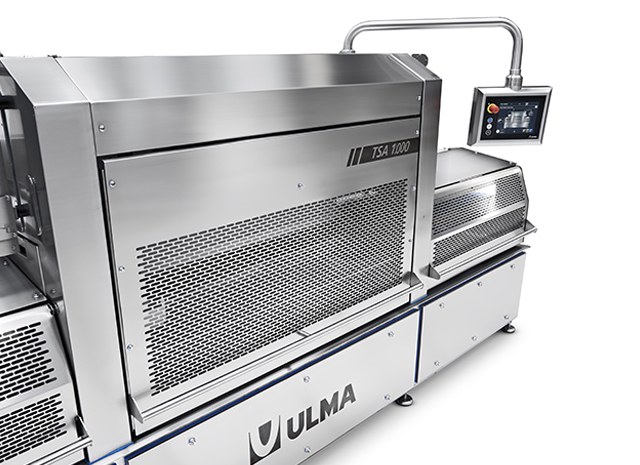

10 “Panel Control (UPC-10B-C) with Industry Suite 4.0.:
– Assistant on screen (SOP).
– Customizable interface.
– Remote connectivity.
– Maintenance program: event management.
