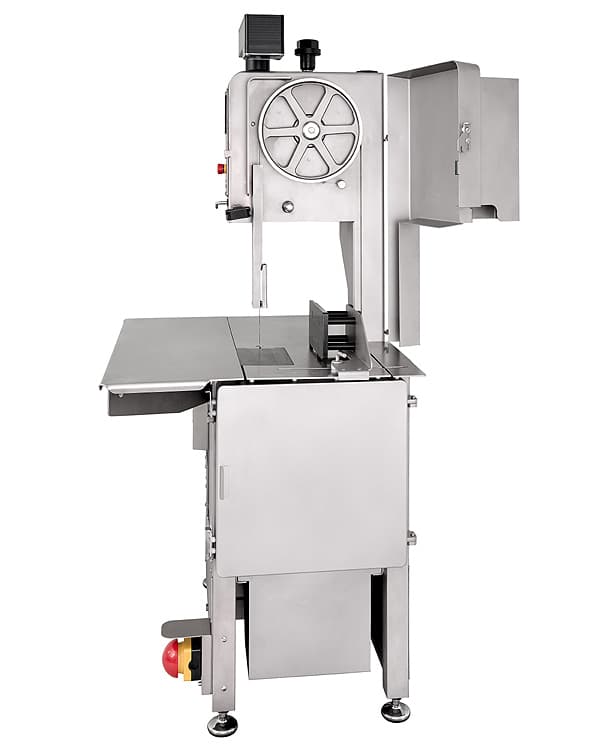

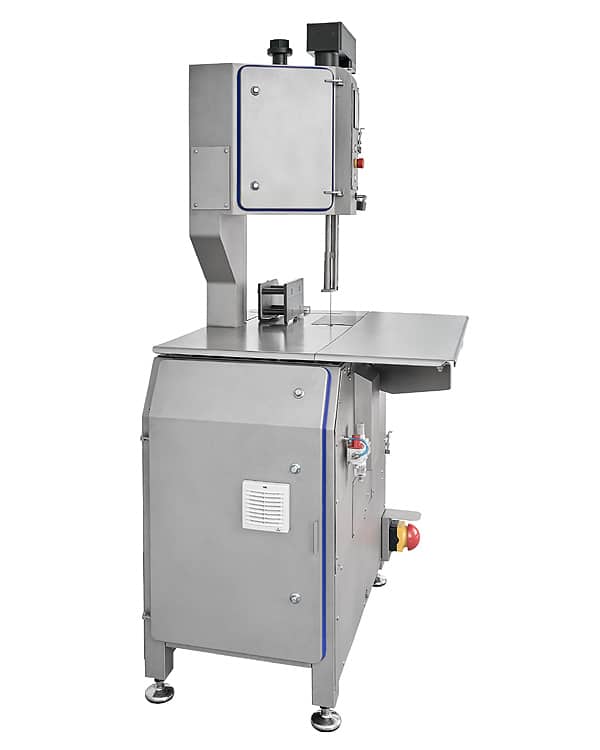

Mainca Sentinel Bandsaw with MAINCA Vision Safety System
Meet the new-generation Mainca Sentinel—engineered for safety, uptime and cleanability. The patented MAINCA Vision system delivers dual detection with a single, untethered glove: an upper camera recognises glove colour while a lower table sensor detects fingers hidden beneath product, enabled by the exclusive Sentinel detectable glove. A sealed, ultra-fast pneumatic brake inside the machine stops the blade in milliseconds and allows immediate restart. With simple hygiene routines and very low maintenance (proven 3,000+ stops without part replacement), Sentinel keeps production moving.
The standard model includes only one detection system, the upper camera.
In order to get the complete MAINCA Vision system with DUAL DETECTION, you need to add the optional glove sensor.
Key advantages

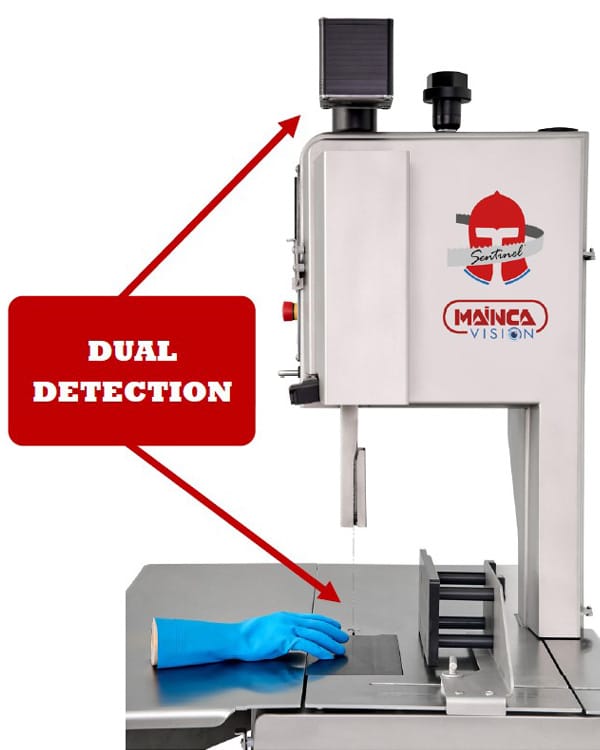

Dual detection (MAINCA Vision): upper camera + lower table sensor for visible and hidden finger detection

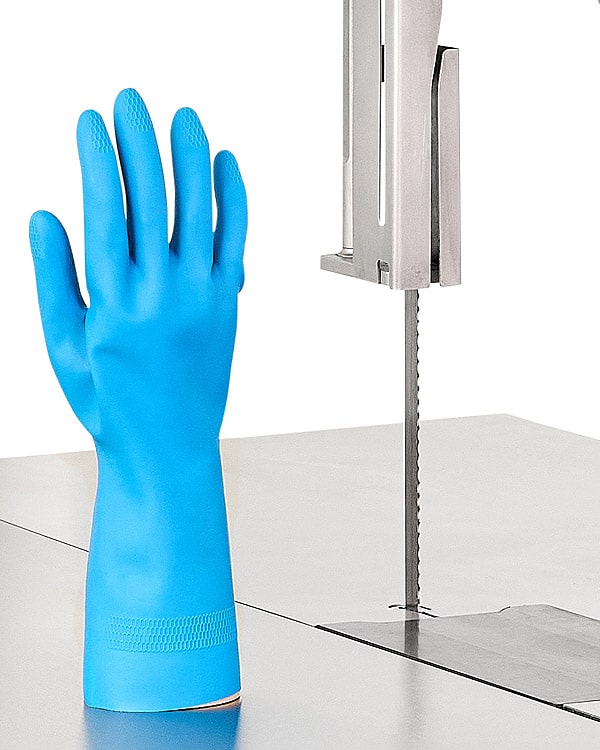

Single rubber glove, no cable to the machine—uses the exclusive Sentinel detectable glove
Internal pneumatic brake halts the blade in milliseconds; immediate restart

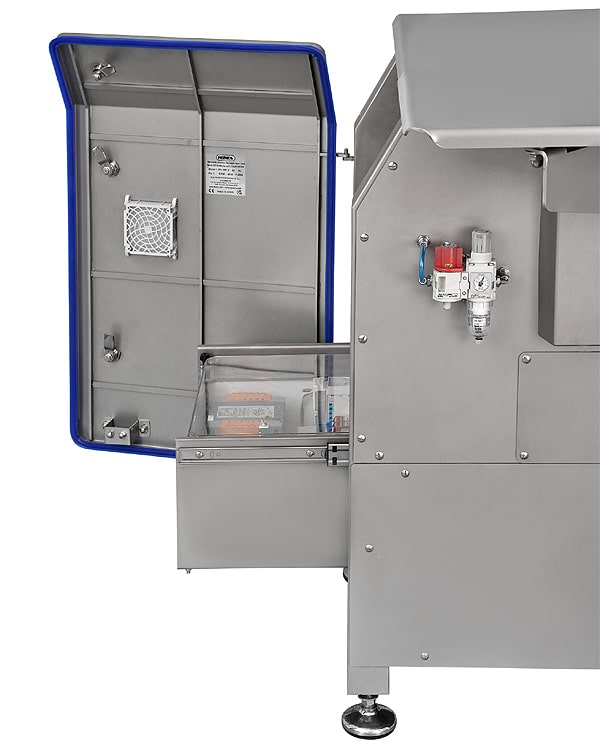

8-bar air supply required; optional built-in compressor available
No broken/damaged blades, easy to clean, low running costs
Touch panel control: adjustable detection zones, user registration, emergency-stop logs, glove-check frequency, and more
Compliance: EC Type Certification — Machinery Directive 2006/42/EC; Standard EN 12268:2014
Additional benefits
Broken or damaged blades will not happen with this machine, and it immediately re-starts.
Low maintenance and easy to clean thanks to the braking system concealed inside the machine.
Impressive stop performance before any parts need replacing.
Specifications
Construction: Stainless steel AISI 304, including wheels
Wheel diameter: 300 mm (12″)
Band length: 2720 mm
Cutting height: 360 mm
Cutting thickness: 280 mm
Blade speed: 20 m/s (4,000 ft/min)
Motor voltage: 3-phase 230–400 V, 50 Hz –
Motor – 5.5HP – 4KW
Gross weight: 510 kg
Optional extras
Glove sensor on the table
Built-in compressor
Half sliding table
Foot emergency stop
