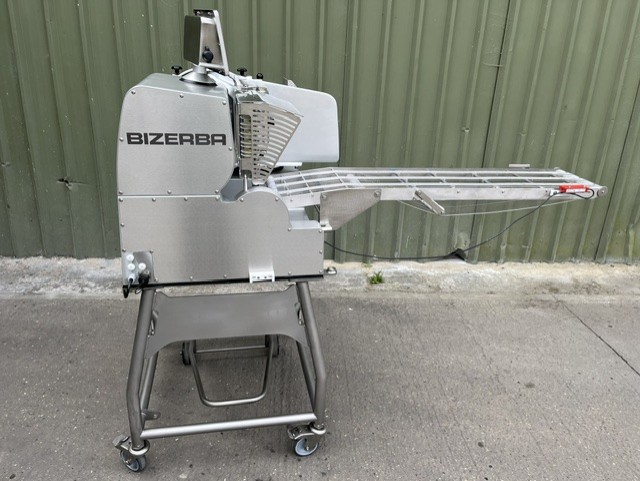

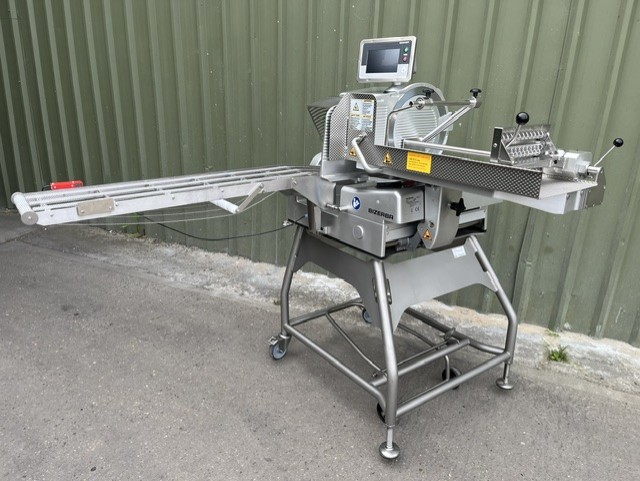

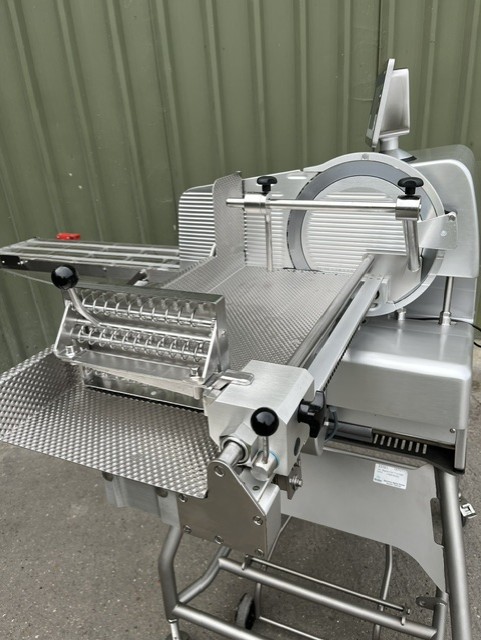

Bizerba VSI330 F T (2020) – 1phase

Highlights
Integrated portion scale for target weight control including weight optimization
Hygienic design for hose cleaning. Optimal cleaning and easy disassembly without tools. The housing shape prevents product residues or liquids from soiling the environment during operation
High slicing performance at minimal energy consumption due to Emotion® technology

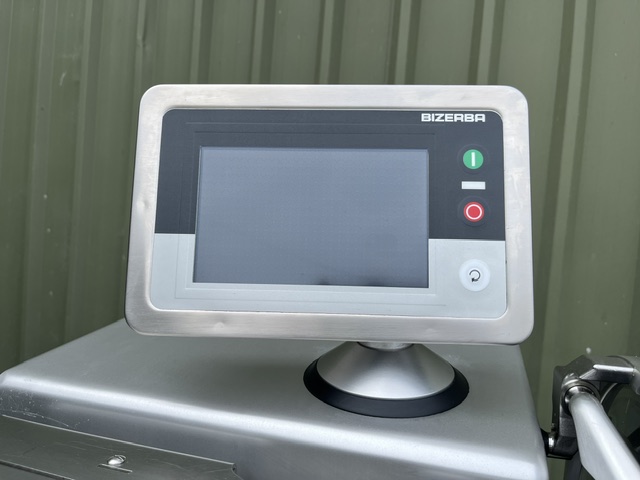

Personalized, future-oriented touch operator ergonomics with individual user profiles and messaging functions (to plan preventative maintenance or in the event of operating errors), monitoring functions (history of all actions, degree of utilization of the machine) up to possible e-Service via the Bizerba Service
Data and control system related signal exchange ensure an optimal integration in customer and line processes

Voltage

100 V / 120 V / 240 V single-phase alternating current
Housing materials

anodized aluminum
stainless steel, for functional components
Plastic

Blade diameter

330 mm / 13.0”
Max. stacking height

60 mm
Slicing performance

30 – 80 strokes/min.
Product size

Round: Ø 180 mm / 7.1”
Height: 180 mm / 7.1”
Width: 240 mm / 9.4”
Length: 400 or 600 mm / 23.6″ or 15.7″
Slice thickness adjustment

0.3 – 12 mm / 0.01 – 0.5”
Protection type

IPx5

Installation area (L x W)

Table: 606 x 628 mm / 23.9″ x 24.7″
Bench: 800 x 847 mm / 31.5″ x 33.3″
Max. dimensions (L x W x H)

VSI T 400 mm carriage: 1743 x 1354 x 1332 mm / 68.6″ x 53.3″ x 52.4″
VSI T 600 mm carriage: 1743 x 1188 x 1332 mm / 68.6″ x 46.8″ x 52.4″
VSI TW 400 mm carriage: 1790 x 1354 x 1332 mm / 68.6″ x 53.3″ x 52.4″
VSI TW 600 mm carriage: 1790 x 1188 x 1332 mm / 68.6″ x 46.8″ x 52.4″

Mechanical and control system related interfaces to external systems such as
interleavers, tray dispensers and packaging machines
Stand mobile and stationary
Integrated portion scale with tendency control during weighing of portions
Depositing on table or conveyor belt
